An Interactive Doorknob

For my pComp and ICM final I’m programming a door knob that generates of series of real-time interactions when you turn it. Ideally, it’s going to be fixed to your maindoor and the controls of its interaction are in a browser based dashboard.

The project is a prototype of multiple interactions that people would find positively useful when interacting with a doorknob (yes, positively). Doorknobs - there are millions of them, and we use them, why can’t we make them do more than just open a door. Phones can do more than make calls, and they’re kind of saturated and so for my project I decided to limit phone use as enablers of another interaction.

Doorknobs, which in reality act like portal activators and quite literally enable a spatial transformation by bringing about a change in environment which envoke a new feeling (comfort, warmth if you’re entering home. Relief that you’re not late, if you’re not late for Tom’s class).

Some use cases I will be working on:

  1. Turning on the lights in the room (adjusting intensity with a browser based slider)
  2. Sending an SMS reminder to yourself or loved one
  3. Activating the chrome or on a Mac with the URL pointing to a Youtube playlist (or any link set from browser)
  4. Turning on the kettle (turning it off/on from the broswer)

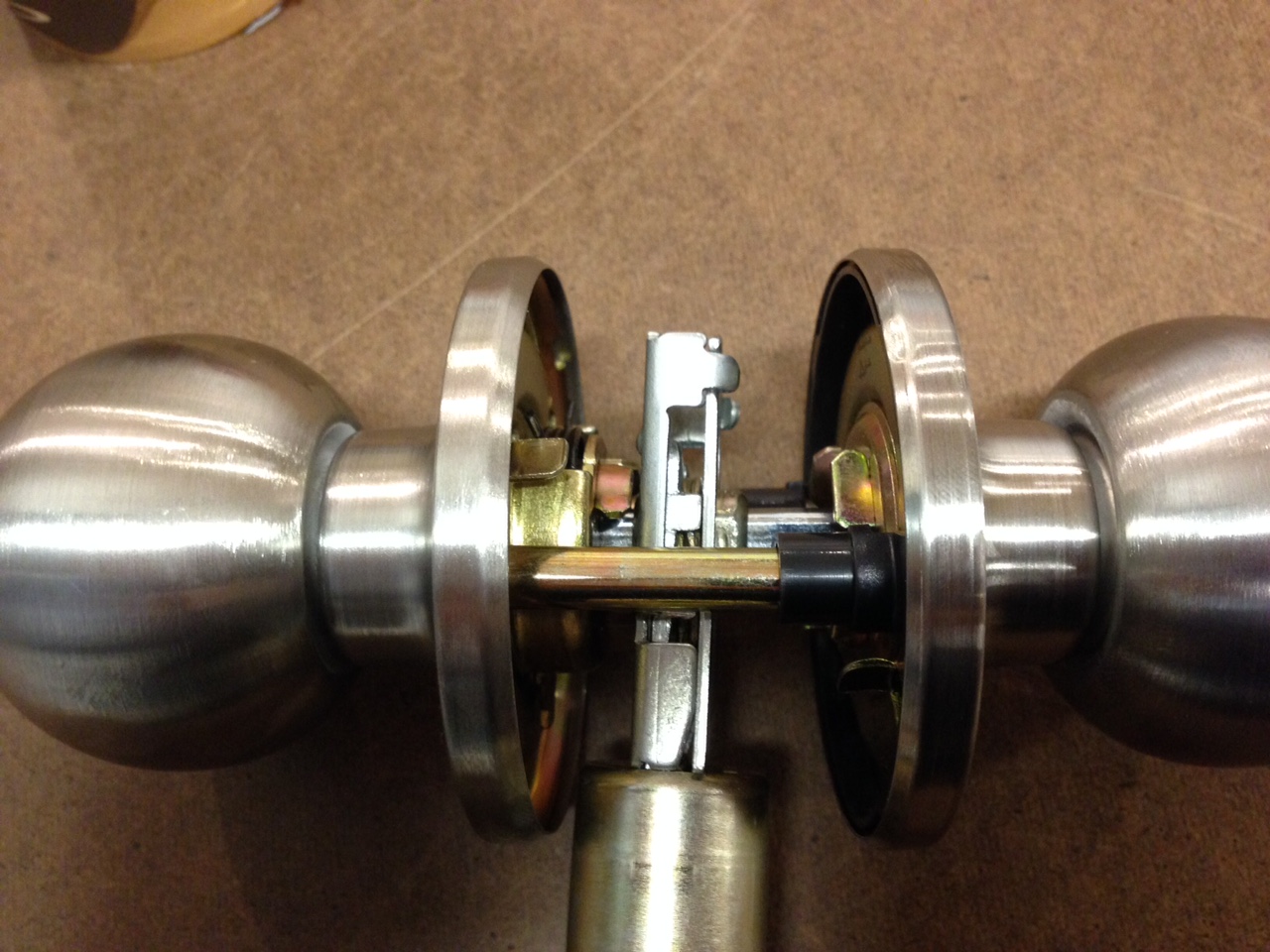

Here’s one of the two doorknobs I’m using,

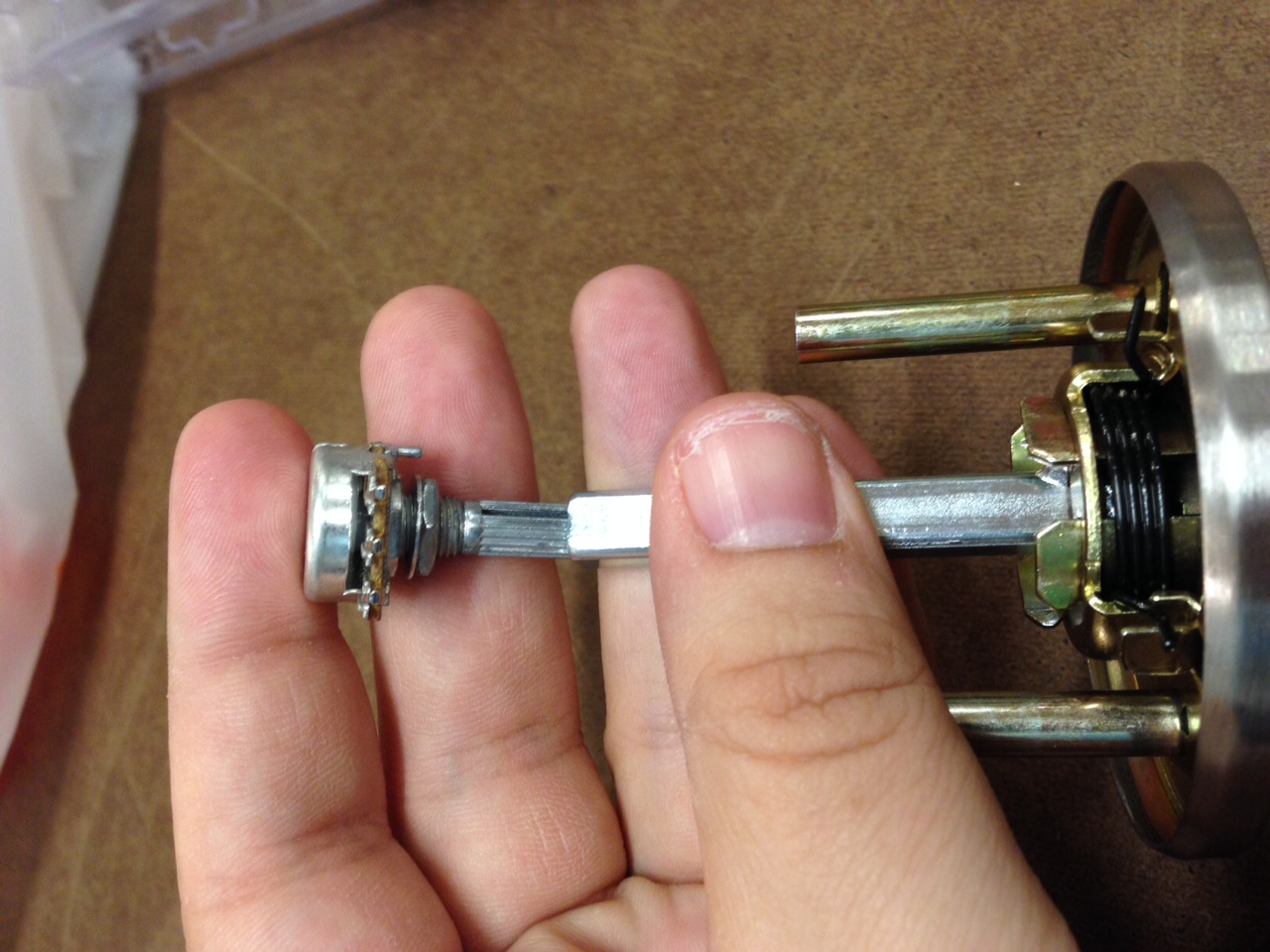

I have to stick a sensor in it

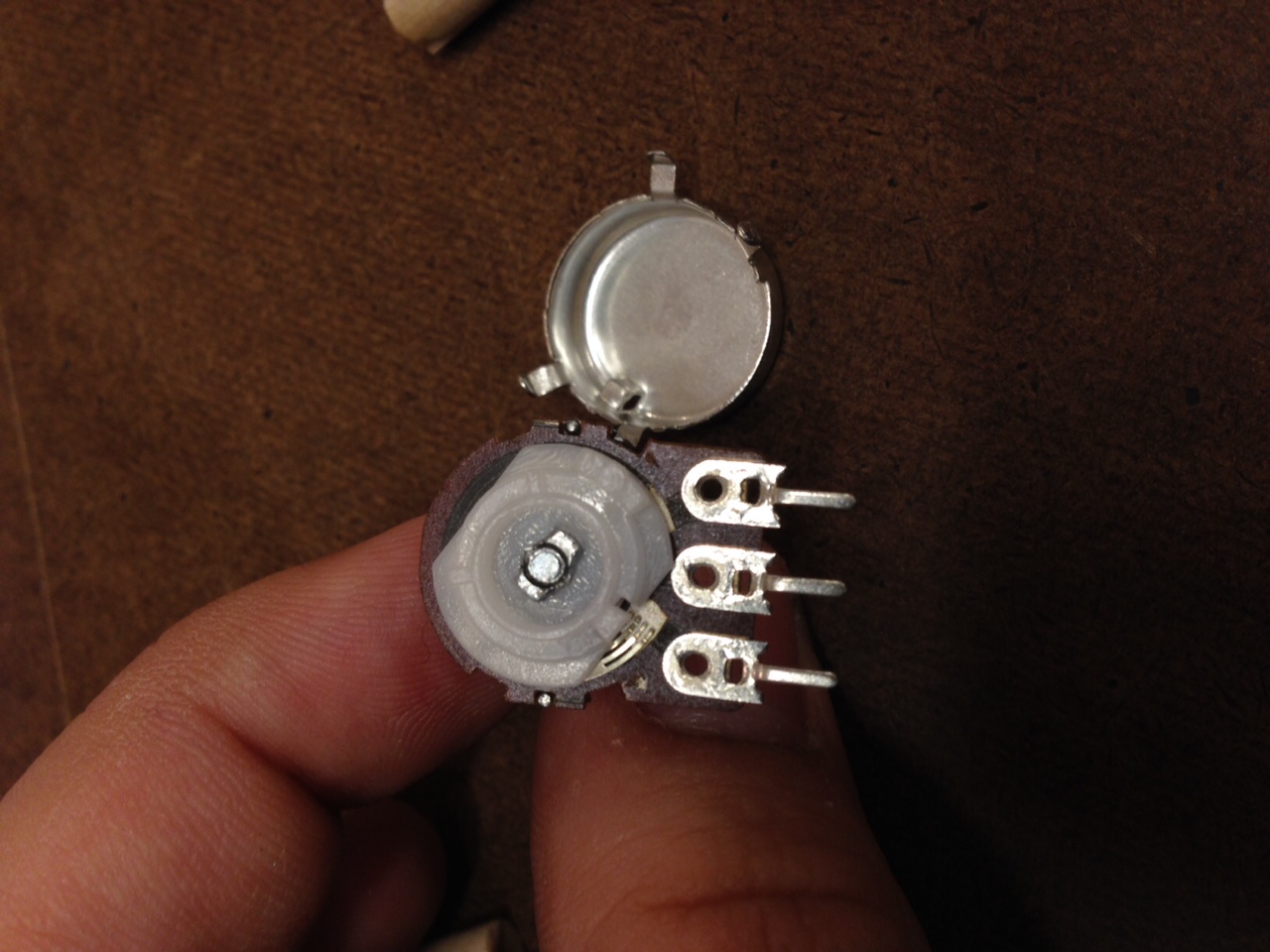

I take apart the pot and fine file the knob according to measurements from vernier calliper

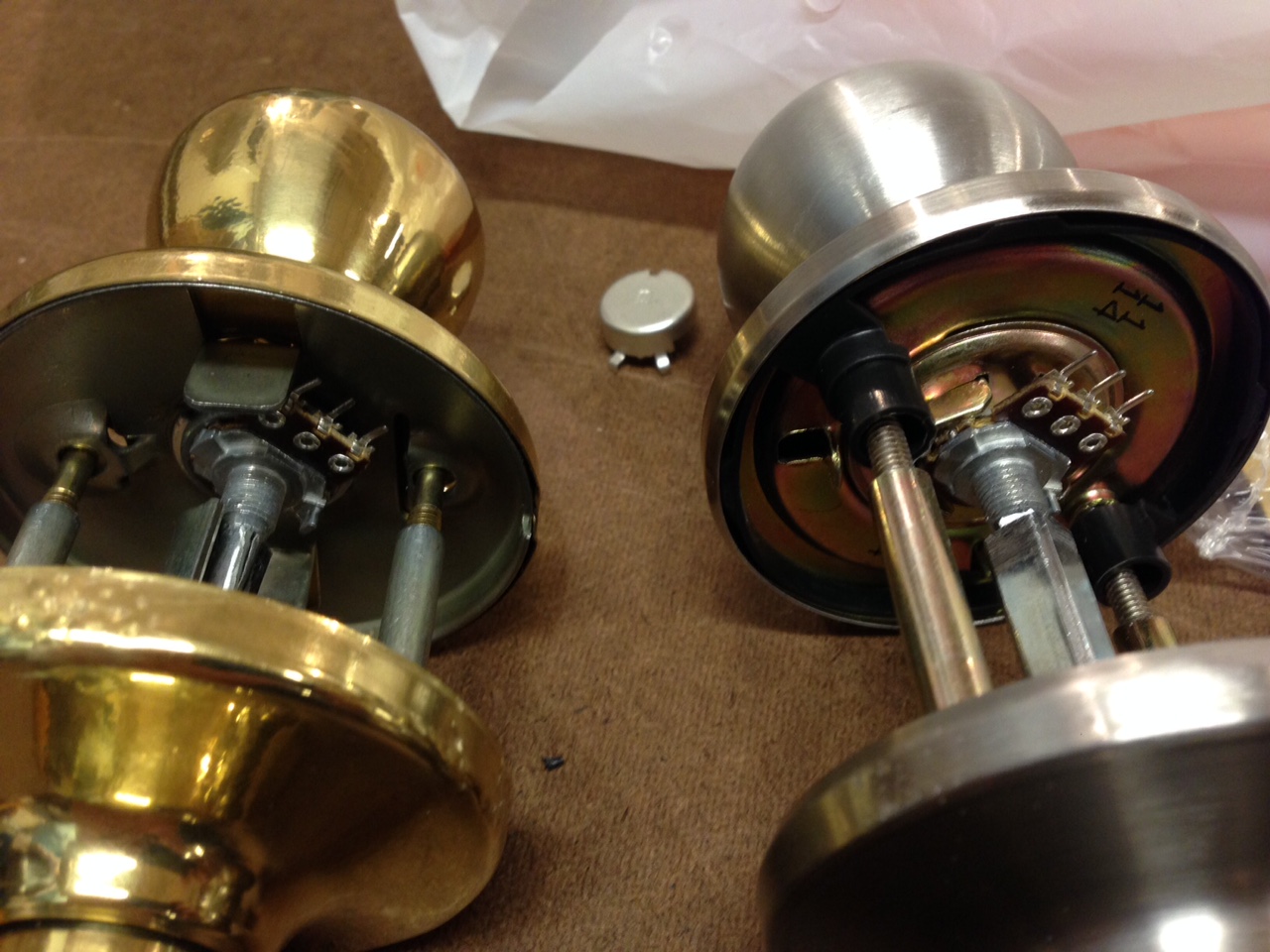

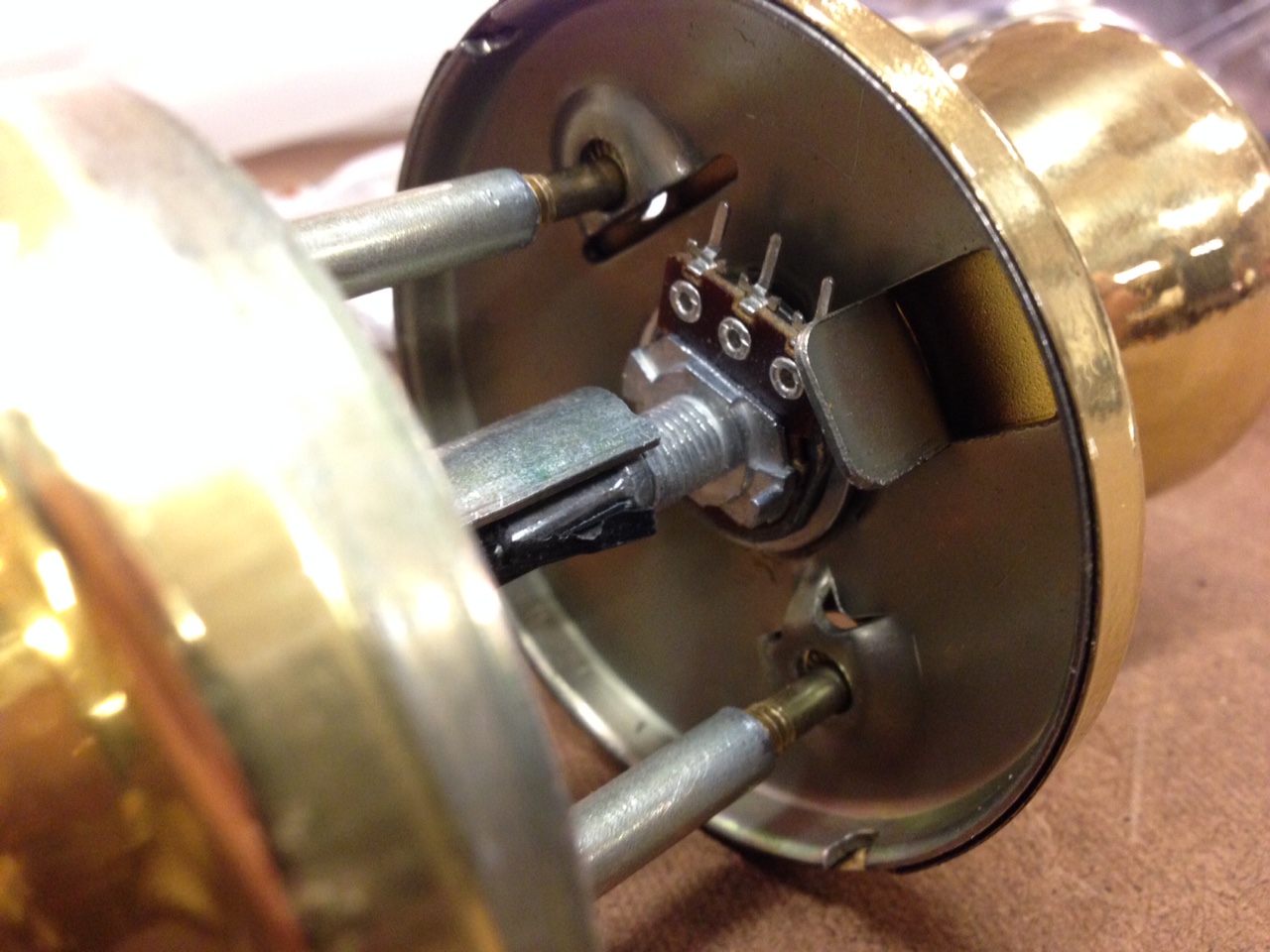

I saw off the doorknobs entrails and adjust the spring in the turn mechanism and fix the pot in

Doorknob sensor in action - yes I have hairy arms

Program1 - SMS function

I will be elaborating more on my programming process in subsequent posts.

var serialport = require('serialport'),
SerialPort = serialport.SerialPort,
portname = process.argv[2];
client = require('twilio')('<--[removed]-->', '<--[removed]-->');

//variables DOM & sketch
var h1; //header text for SMS
var setSMS; //button
var inputSMS; //input SMS text
var setPhoneNumber; // input phone number

//setup port
var myPort = new SerialPort(portname, {
	baudRate: 9600,
	options: false,
	parser: serialport.parsers.readline("\n")

myPort.on('open', function(){
	console.log('port is open');

myPort.on('close', function(){
	console.log('port is closed');

myPort.on('error', function(){
	console.log('there is an error');

//An IF statement saying if myPort.on('data', function(data)) is returning values, client.sendMessage should execute

myPort.on('data', function(data){

//DOM for SMS setup

function setup() {
h1 = createElement('h3', "Input SMS Reminder Text");
h1.position(width/2, height/2);

setSMS = createButton("set SMS");

setPhoneNumber = createInput("phone number +17185701757");

inputSMS = createInput("sms text goes here...");


function updateSMSto(){ = setPhoneNumber.value(); //should it be?;

function updateSMSbody(){
client.sendMessage.body = inputSMS.value(); //shoud it be? client.sendMessage.body(inputSMS.value());

function draw() {


//Send an SMS text message - where in p5 does this go? works on its own "node sendsms.js"

    to:'+17185701757', // Any number Twilio can deliver to
    from: '+17182159247', // A number you bought from Twilio and can use for outbound communication
    body: 'Hello Osama - this is a test message.' // body of the SMS message

}, function(err, responseData) { //this function is executed when a response is received from Twilio

    if (!err) { // "err" is an error received during the request, if any

        // "responseData" is a JavaScript object containing data received from Twilio.
        // A sample response from sending an SMS message is here (click "JSON" to see how the data appears in JavaScript):

        console.log(responseData.from); // outputs "+14506667788"
        console.log(responseData.body); // outputs "word to your mother."
